集中供料设备_物料自动化设备介绍

Dense phase conveying system-Industrial grade

Dense phase conveying system-Industrial grade

The material is piecewise formed by embolization, and the method of conveying is called dense-phase conveying.

Advantages of dense phase transportation: the dense phase transportation has low noise, large transportation capacity, long distance compression transportation, relatively small friction collision of materials, so that the material damage and equipment wear is less, and energy consumption is less. Suitable for fragile materials.
Dense phase conveying system-food grade

Dense phase conveying system-food grade

The material is piecewise formed by embolization, and the method of conveying is called dense-phase conveying.

Advantages of dense phase transportation: the dense phase transportation has low noise, large transportation capacity, long distance compression transportation, relatively small friction collision of materials, so that the material damage and equipment wear is less, and energy consumption is less. Suitable for fragile materials.

The food-grade dense phase conveying system is required to meet the food hygiene and safety standards.
Powder small Material System

Powder small Material System

The self-developed powder small material measurement system has successfully realized the automatic storage and measurement of small and micro powder materials and the accurate delivery to the mixing equipment of the production line.

Product advantages:

1. High measurement accuracy

2. High degree of automation

3. Low equipment investment cost, low operation and maintenance cost

4. Small area
Bag Drop Station

Bag Drop Station

Small bag feeding station, used for bag powder and granular material removal and unloading operations. It is used in plastics, food and other industries to unpack and unload dry granular materials such as lime powder, PVC powder and flour.

Advantages: it can make the material fall into the storage bucket by gravity to complete the disassembling and discharging work through manual bag dismantling, automatic dumping and other steps. The dust generated in the operation is filtered by the dust removal device carried so that workers can work easily in a clean environment. It is environmentally friendly, avoiding direct contact between people and objects and providing production efficiency.
Screening Block feeding station

Screening Block feeding station

The feeding station consists of feeding bin, vibrating screen, dust removal and separation system, fan and vibration motor and other equipment. In this way, dust and dust generated during feeding will be pumped into the filtration system under the negative pressure of the fan to separate the gas from the material. When the material gathers, it will fall into the stock bin due to its weight.

Advantages: the equipment is easy to operate, easy to observe, easy to repair, easy to maintain and easy to clean, while protecting the environment and the operator's health.
Mobile uppacking Station

Mobile uppacking Station
The materials can be used for different purposes in the same container, which can achieve frequent working procedures such as no material transfer and no material addition, and effectively prevent dust cross contamination.
Automatic Destacker

Automatic Destacker
Automatic destacker mainly bags of powder, granule materials for prducts unloading operation, by the automatic feeding device or artificial will be on the bag, bag through the bag powder material conveyor automatically transfer to 45 degree Angle of skateboard, and to rely on material bag its gravity along the slide down, in the process of decline by rapidly spinning blades will cut, packet was cut open the residual bag and material into the bag of screening separator, the separated from content bag separator material by material collector and through the bucket elevator output to the packet. Advantages: the automatic disassembling machine has the characteristics of reliable performance, low power consumption, low noise, low failure rate and easy operation
Fluid small Material system

Fluid small Material system

The company's independent research and development of small powder material measurement system, successfully achieved the automatic storage of small powder materials, measurement, and accurate delivery to the production line mixing equipment.

Five advantages:

1. High measurement accuracy

2. High degree of automation

3. Cooperate with the main material delivery system to achieve full automatic control of all raw materials

4. Low equipment investment cost, low operation and maintenance cost

5. Small area

Home page 1 2 3 4 5 6 7 8 9 10 The previous page back All 10page78

Hot product

Arch breaker - pneumatic vibrator

Screening Block feeding station

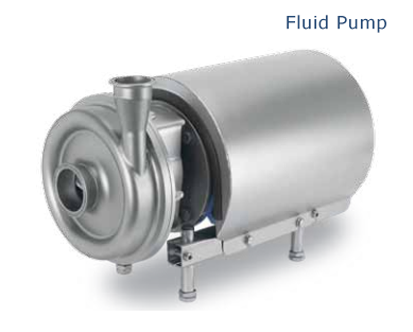

Fluid Pump
